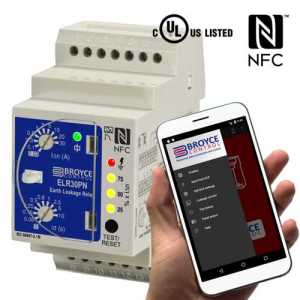

ELR30PN

Type A tripping characteristics

• Monitors/detects fault currents (up to 30A) when used in conjunction with a separate toroid
• NFC – Allows user to configure and set accordingly using intuitive app
• Adjustable Sensitivity and Time Delay
• Local/Remote “Test” and “Reset” push buttons
• Toroid open circuit detection
• 2 Relay outputs – Standard Output (S.O.) and Positive Safety Output (P.S.O._ – user configurable
• LED indication
• UL Listed

Data Sheet

App

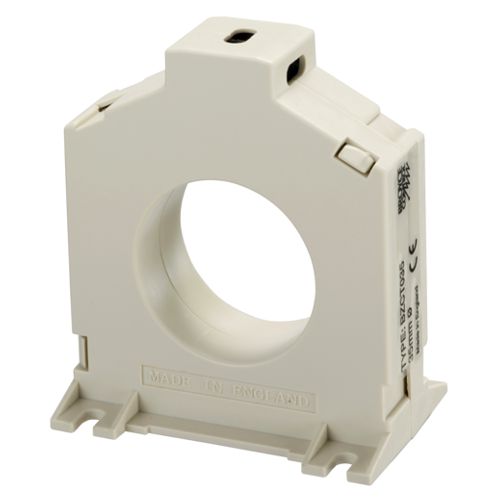

BZCT

Circular Toroids

• Used in conjunction with above Type A Earth Leakage Relay
• Aperture size diameters from 35mm up to 300mm

Data Sheet

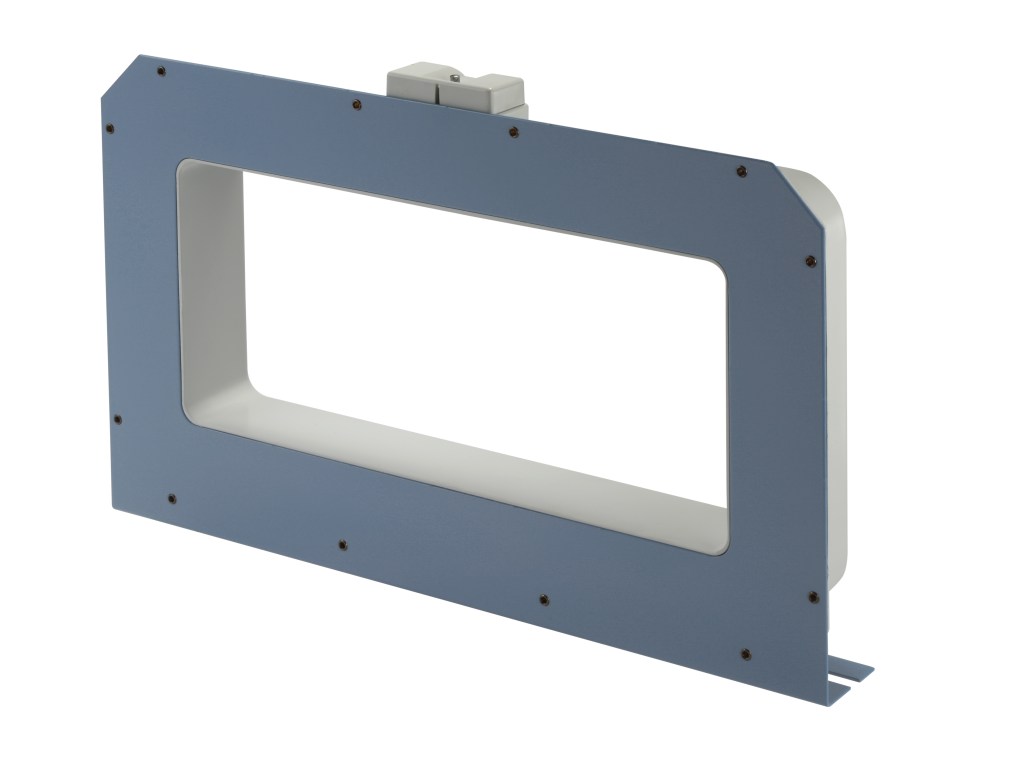

BZCTR

Rectangular Toroids

• Used in conjunction with above Type A Earth Leakage Relay
• Aperture sizes 150 x 350mm and 160 x 470mm

Data Sheet

ELRB-03

Type B tripping characteristics

• Monitors/detects smooth DC, pulsed DC and AC fault currents in conjunction with a separate residual current sensor
• Adjustable Sensitivity and Time Delay
• Combined Test/Reset button
• Toroid open/short circuit detection
• 2 Relay outputs – Standard Output (S.O.) and Positive Safety Output (P.S.O.)
• Aux. supply voltage: 24-230VAC/DC
• Compliant with IEC 60947-2 /Annex M

Data Sheet*

* Data Sheet also includes technical information about the separate residual current sensors
