A range of Green PHY compliant powerline communication (PLC) modems designed for use in Electric Vehicle Supply Equipment (EVSE) in accordance with the IEC/ISO 15118 standard for road vehicle to grid digital communication.
GP-01
V2G Powerline module
The module consists of a Green PHY transceiver and line driver together with filtering to allow it to be connected directly to a 1:1:1 signal transformer whose primary carries the –12V/+12V Control Pilot PWM signal as defined in IEC 61851 (Electric vehicle conductive charging system).
- Line-driver included
- Guaranteed long range transmission using powerline communications (PLC)
- Decreases the time required to fully charge the EV battery
- Low energy consumption compared to traditional PLC’s
- 3.3V DC operation
- Built-in overvoltage protection

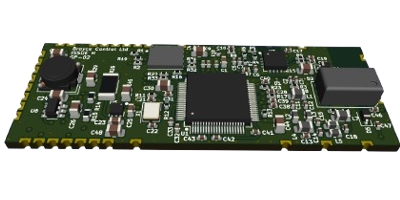

GP-02
V2G Powerline module
The module consists of a Green PHY transceiver, on-board transformer and coupling components that allow it to be connected to a customer provided Control Pilot line.
- On-board transformer and coupling components
- Industrial temperature range operation
- Line-driver included
- 3.3V DC operation
- Built-in overvoltage protection

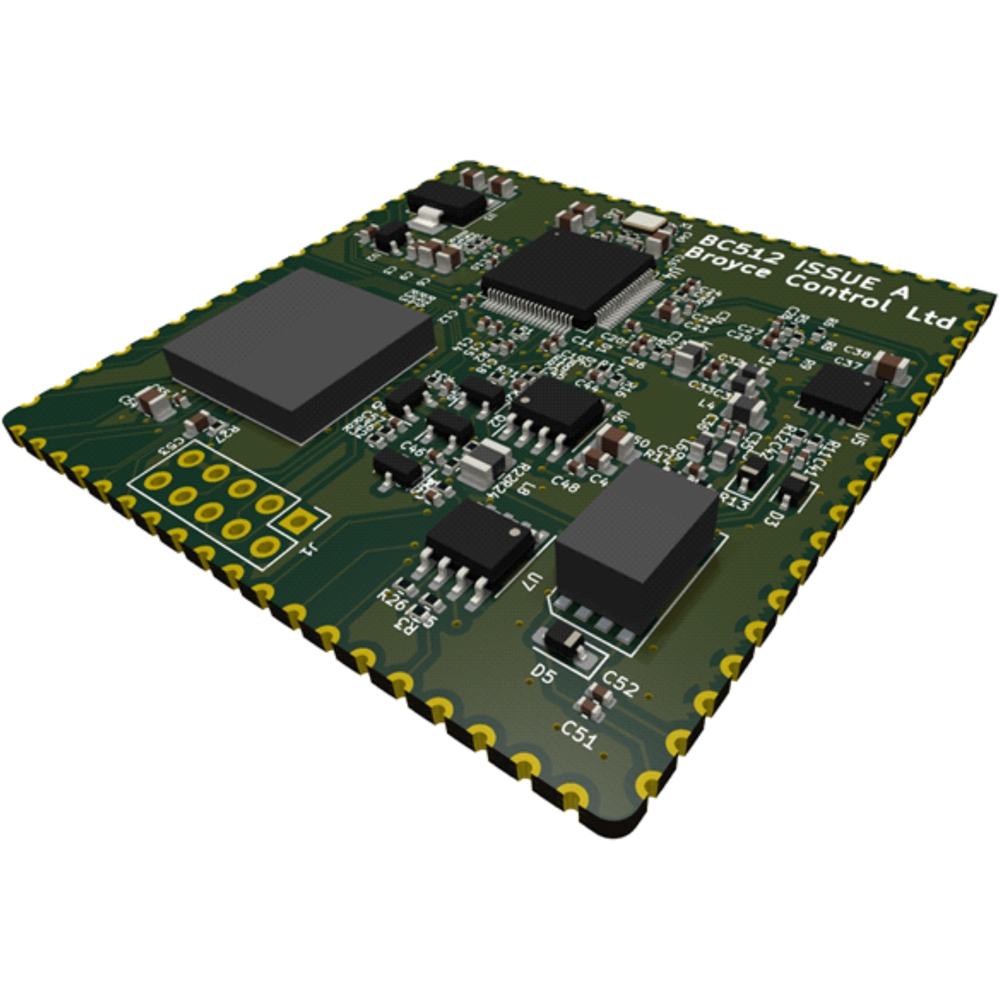

GP-03 [In Development]
V2G Powerline module
The module consists of a Green PHY transceiver and line driver together with filtering and on board 1:1:1 signal transformer whose primary carries the Control Pilot PWM signal as defined in IEC 61851 (Electric vehicle conductive charging system).
- Onboard microcontroller
- Suitable for interfacing to the Espressif ESP32 microcontroller-based modules
- Optional IEC 61851 CP PWM generation and voltage monitoring
- Built-in 1:1:1 signal transformer
- 5V DC operation
GP-04
V2G Powerline module
The module consists of a Green PHY transceiver, on-board transformer and coupling components that allow it to be connected to a customer provided Control Pilot line. An optional non-isolated zero-cross digital input is provided to allow coexistence with PLC running over mains wiring.
- Compliant with IEC/ISO 15118-3
- On-board transformer and coupling components
- Pin header mounting
- Industrial temperature range operation
- Line-driver included
- Built-in overvoltage protection
- 3.3V DC operation
